Stage Accessories & Sample Holders
Custom made stage accessories
Clemex designs and manufactures sample holders and stage adapters. Below are just a few examples of a wide range of custom parts available, produced to meet any customer specifications. Our representatives will be happy to assist you. Do not hesitate to contact us.
Sample holders for hardness testing
Self level vises with or without test block available for samples of various sizes and shapes.

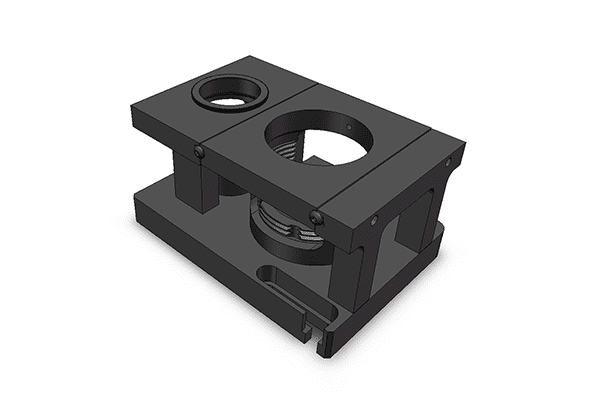

Self level vise for mounted sample, with test block
For motorized stages 100 x 60 mm. One Clemex insert ring required (maximum size 60 mm)

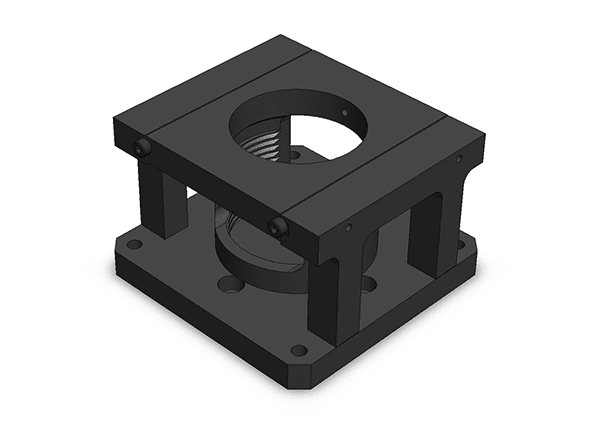

Self Level vise for mounted sample, no test block
For motorized stages 100 x 60 mm. One Clemex insert ring (60 mm) is required
Self level vise for mounted or unmounted samples
For motorized stages 100 x 60 mm.

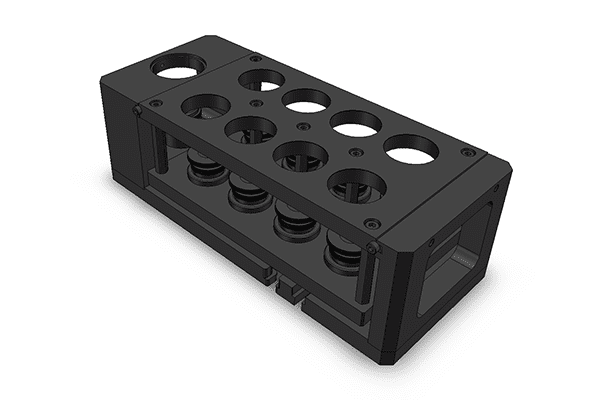

Self level vise for mounted samples with test block
For motorized stages 200 x 100 mm Various sizes of samples available

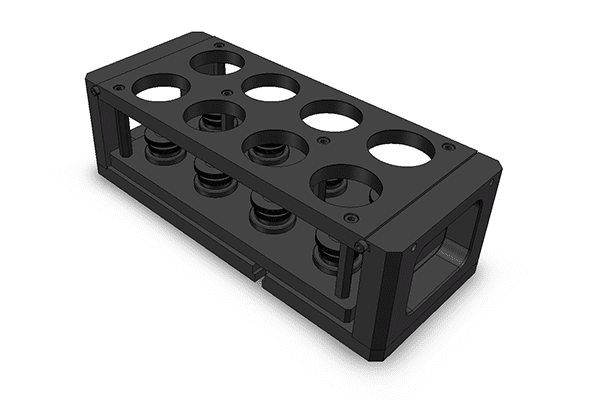

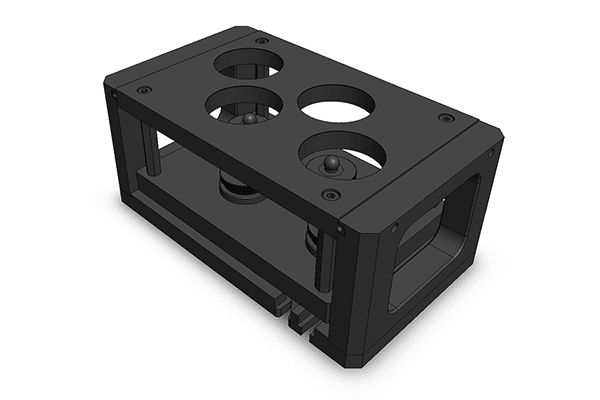

Self level vise for mounted samples, no test block
For motorized stages 200 x 100 mm Various sizes of samples available
Self level vise for mounted samples, no test block
For motorized stages 100 x 60 mm. For 4 samples

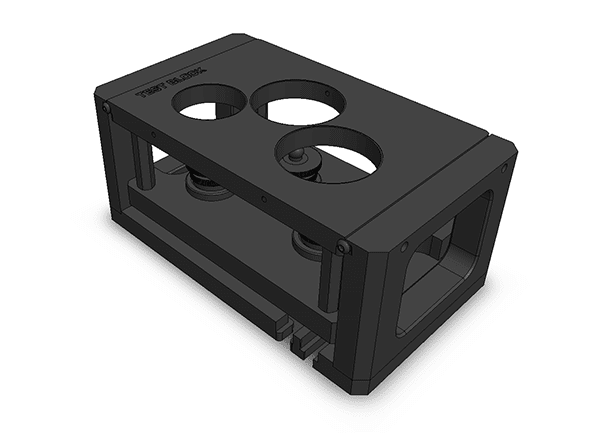

Self level vise for mounted samples, with test block
For motorized stages 100 x 60 mm. For 2 samples
Sample holders for metallurgical specimens
Stage insert plates and holders for inverted or upright microscopes. Multiple quantity and sizes of samples available.
Magnetic insert plate for 24 unmounted samples

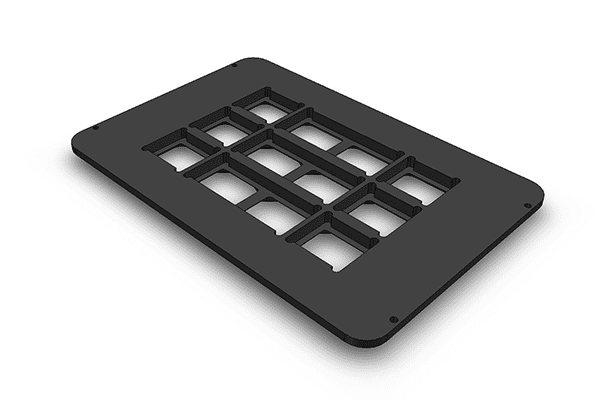

Magnetic insert plate for 12 unmounted samples

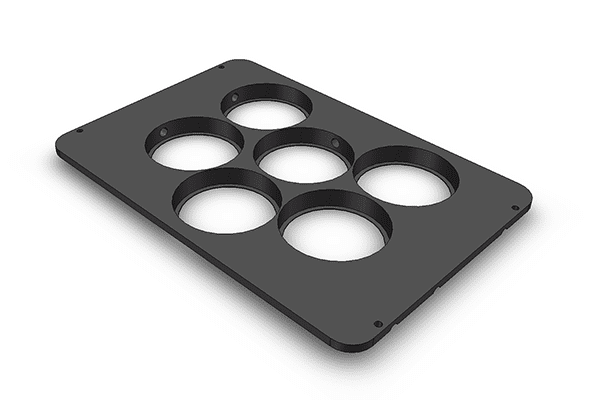

Stage Plate for 6 mounted samples
Stage Plate for two mounted and unmounted samples
Stage Plate for one mounted sample

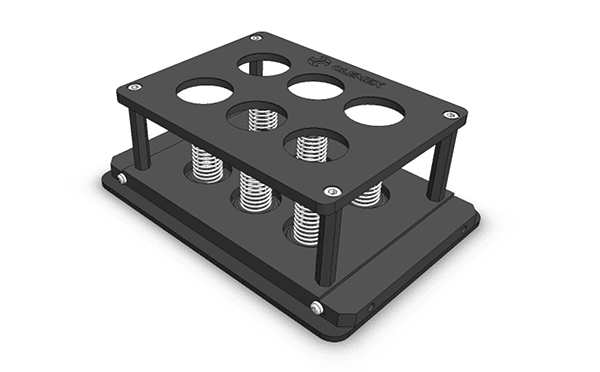

Specimen holder for Nikon upright microscopes
Wanna know more about our custom accessories?
Sample holders for contaminants and powders
A variety of stage plates and sample holders for paper or membrane filters, glass slides, silicon wafers and Gel Paks.

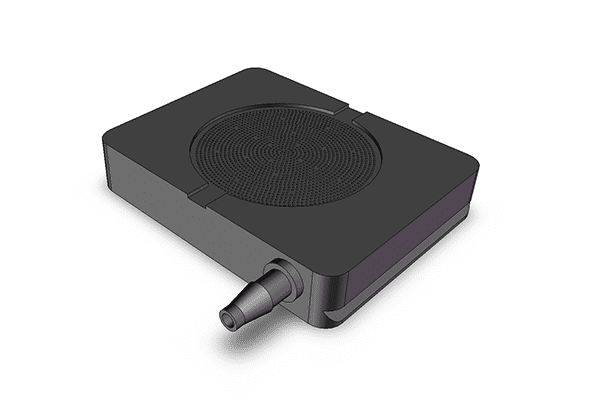

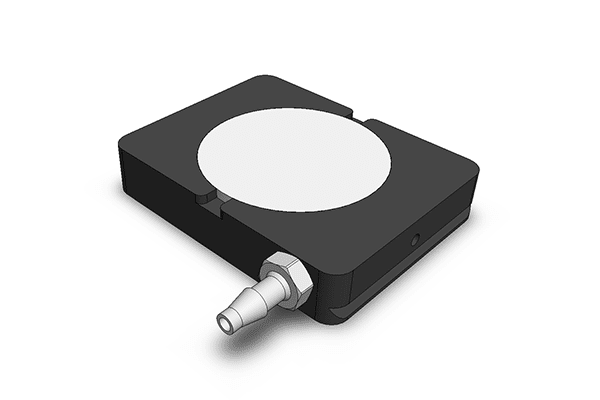

Vacuum chuck block for paper filter
For 47 mm filters.
Vacuum chuck block for paper filter
With quartz insert for 25 mm or 40 mm filters.
Vacuum chuck stage insert for 6 filters
With quartz insert for 25 mm or 40 mm filters.

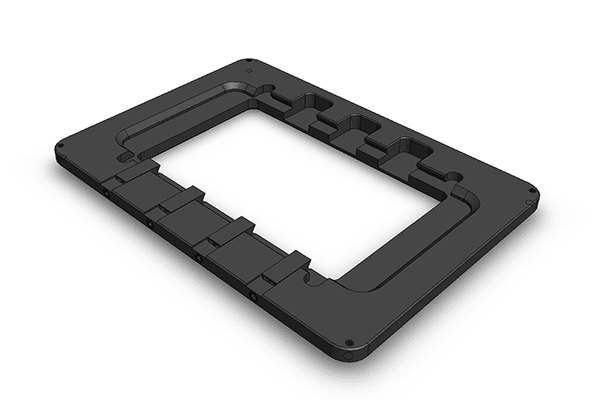

paper filter holder for 2 or 4 slides
Size 116 x 160 mm

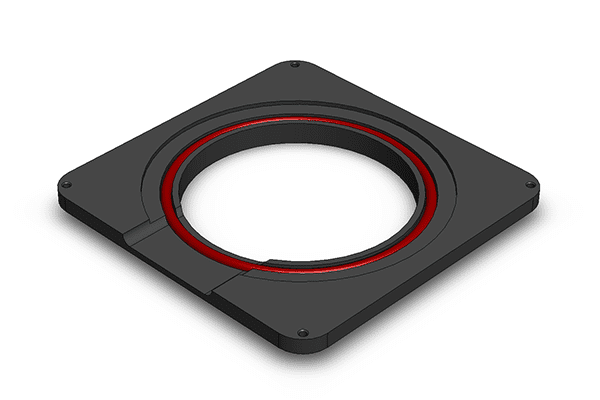

Stage plate for one 4” wafer

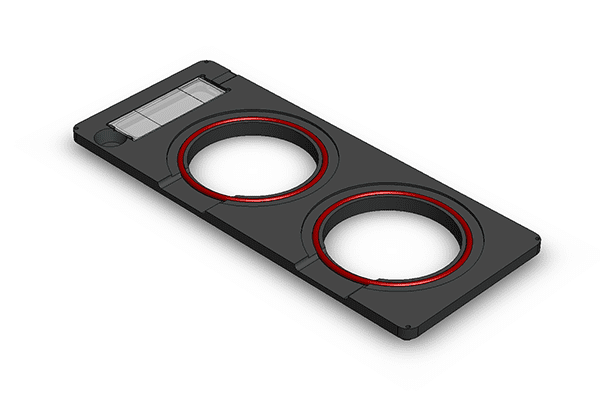

Stage plate for two 4” wafers
With or without integrated stage micrometer calibration slide

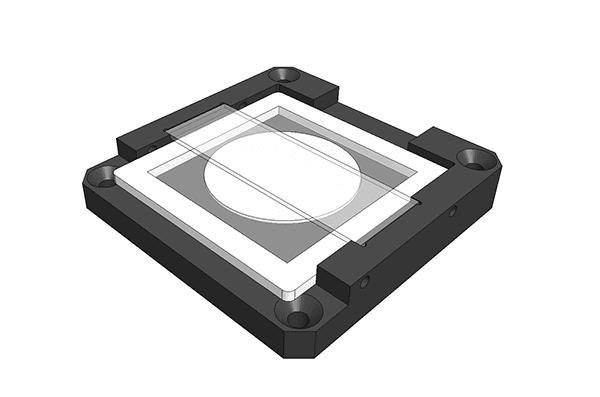

Filter Cassette Holder
For one cassette. With stage micrometer calibration slide

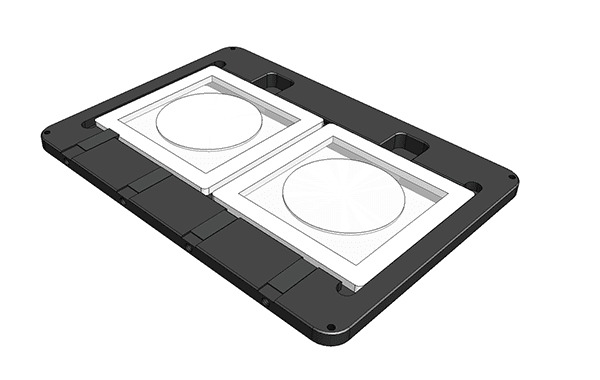

Filter Cassette Holder
For two cassettes. Shown here without base, with filter cassettes
Dual gel pack holder for standard size
For two cassettes. Shown here without base, with filter cassettes
