Cleanliness analysis as per ISO 4406&4407
SO 4406 &4407 define the methods to determine the particulate contamination in hydraulic fluid power systems by optical microscope. In this report, a membrane filter sample was submitted for particulate contamination determination and identification according to ISO 4406&4407.
Figure 1. Mosaic of filter at 200x.

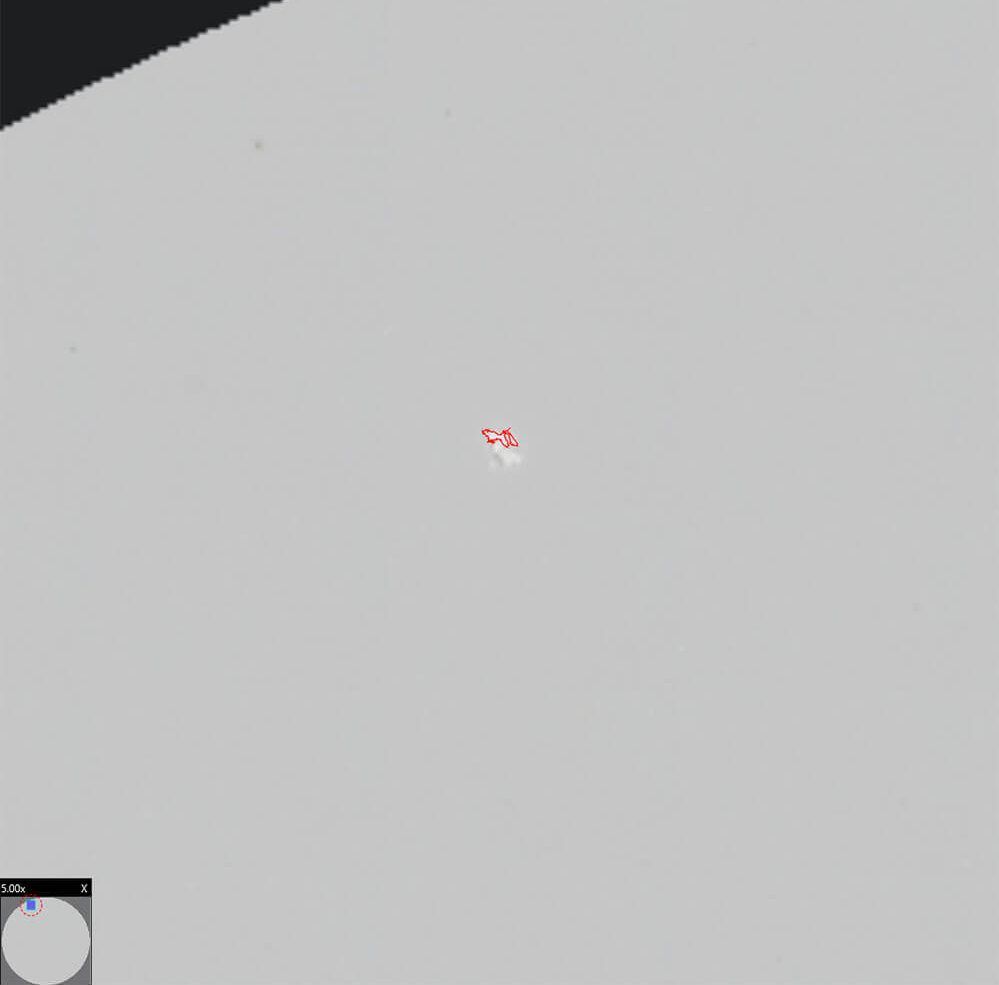

Figure 2. Largest metallic particle.
Figure 3. Largest non-metallic particle.

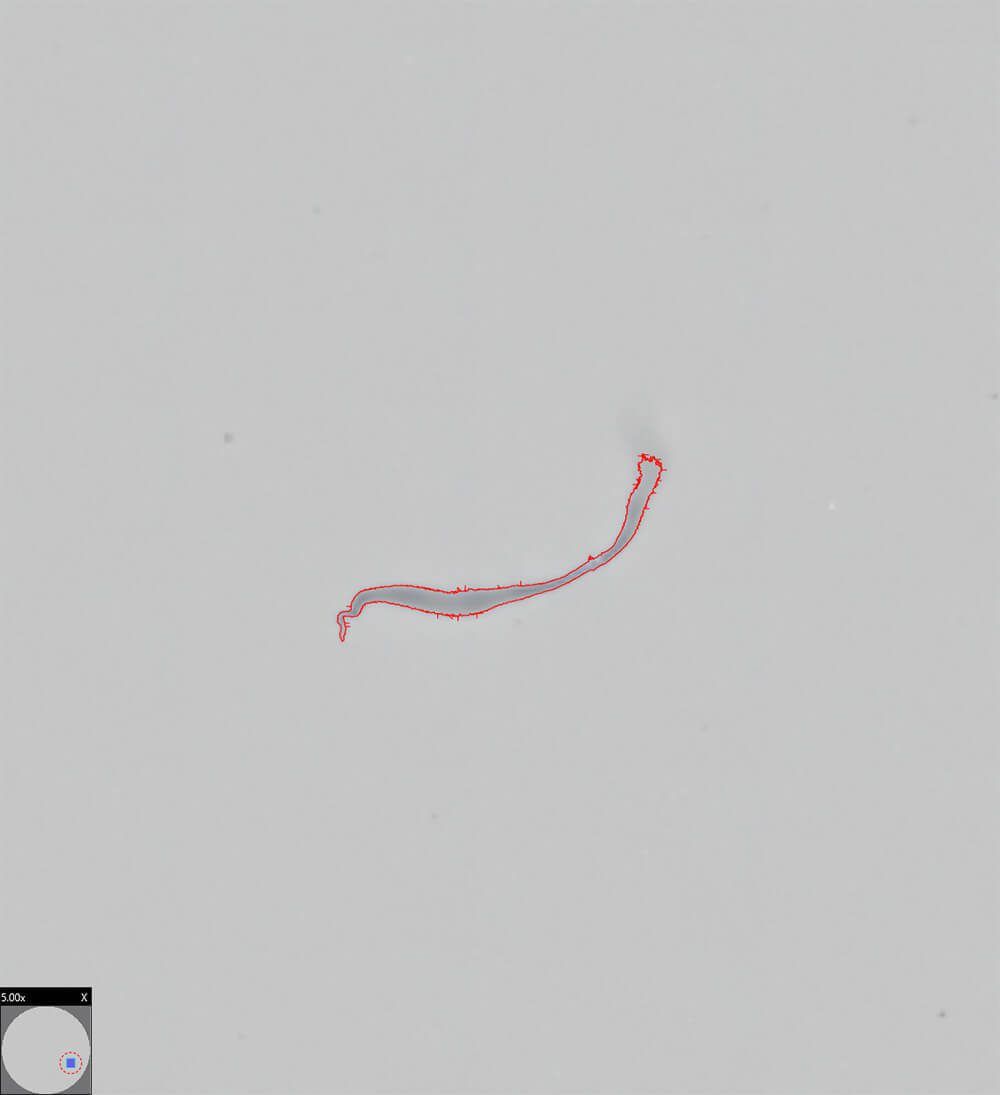

Figure 4. Largest fiber.
Clemex solution for Cleanliness analysis as per ISO 4406 & 4407
Solution
Demonstrate the ability of Clemex Contaminants to automatically identify, measure and classify particles with respect to ISO 4406&4407. The technical report is linked at the bottom of this page (click the Download PDF link).

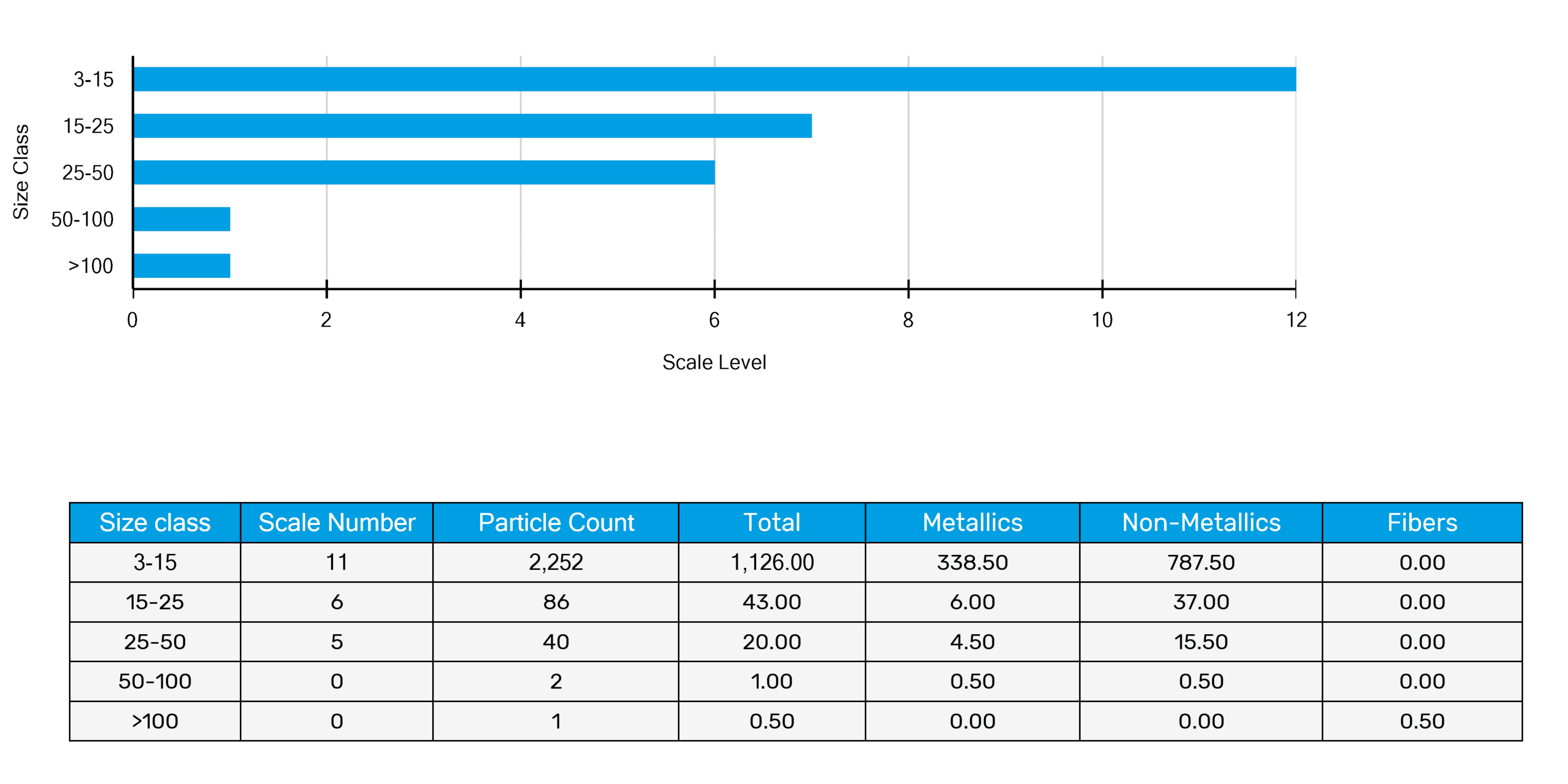

Results
The whole area of the filter was scanned during the analysis. The sizes of different particles were measured and classified based on ISO 4406&4407. Final results can be printed directly from Clemex Contaminants. Raw data can be exported in Excel format.
