Coating characterization
In this application, Clemex Vision discriminates the two coatings and the layer of paint to produce length distribution measurements.

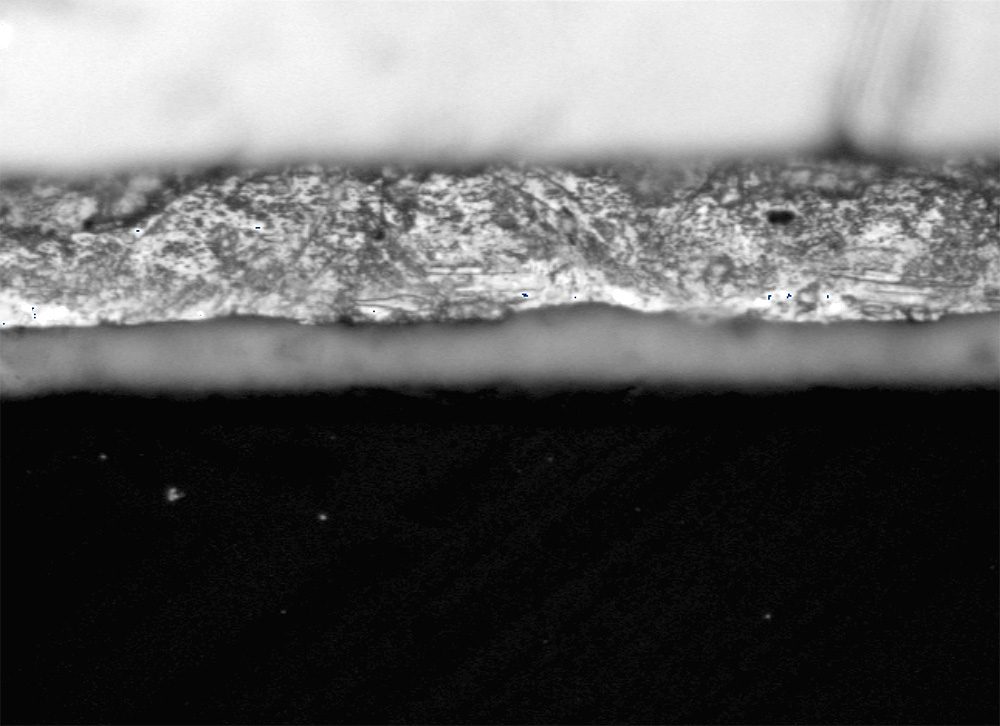

Figure 1. The microstructure of metallic sheet is viewed at 500X magnification. About ninety fields are analyzed on each side of the sample.

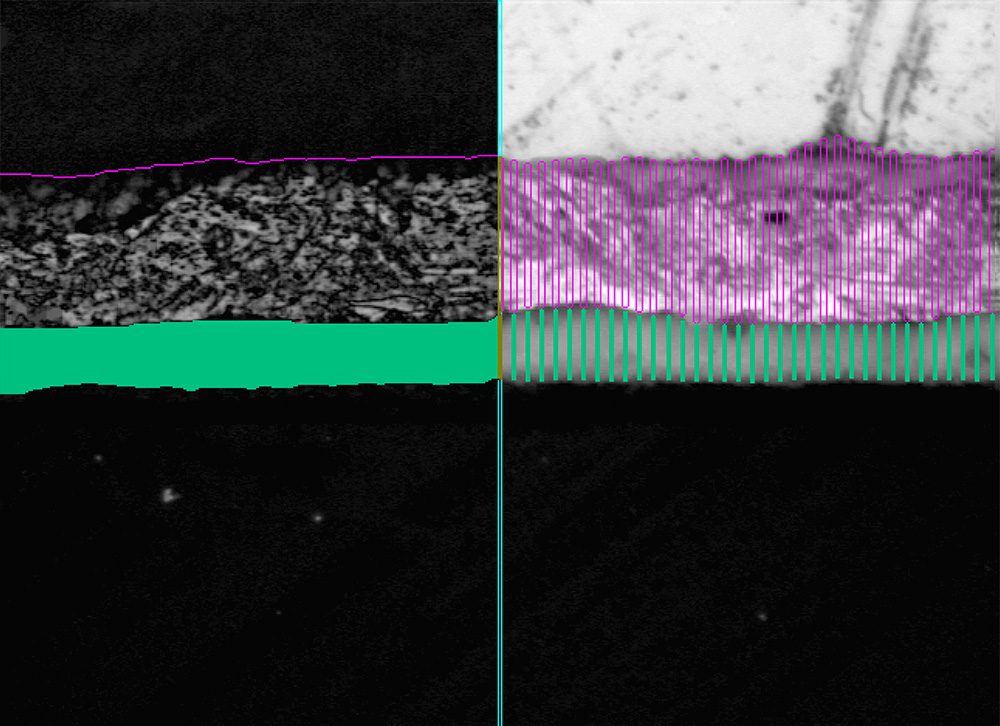

Figure 2. Left: Coating outlines in pink and paint layer in aqua overlay against the transformed gray image (Top Hat). Right: Same bitplanes transform into measuring lines and overlay against the reconstituted gray image (Multi Layer Grab).
Clemex solution for Coating characterization
Solution
Demonstrate the ability of the Clemex Vision image analysis system to discriminate and measure the 2 coatings and the layer of paint. The methods and operations used are discussed in the report linked at the bottom of this page (click the Download PDF link).
Results

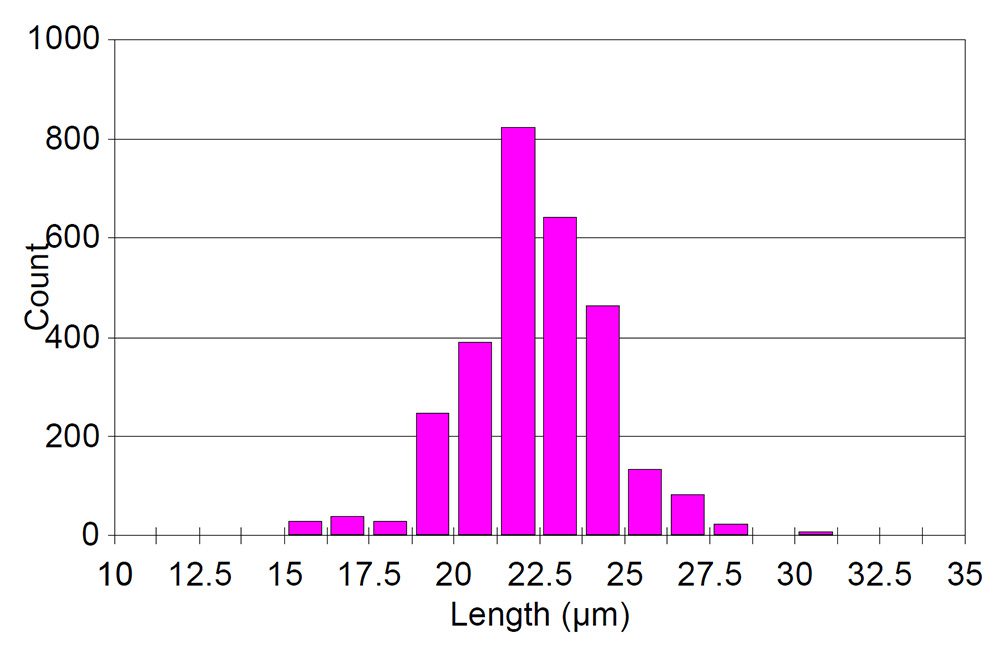

Measurements are performed on measuring lines to obtain a distribution of the coating thickness. Final results can be printed directly from Clemex Vision. Raw data are linked to their respective objects for validation purpose. Raw data can also be exported in Excel format.
