Fertilizer particle size and shape
Mono ammonium phosphate powder is submitted. Clemex Powder Disperser is used to distribute particles uniformly on a slide for image analysis.

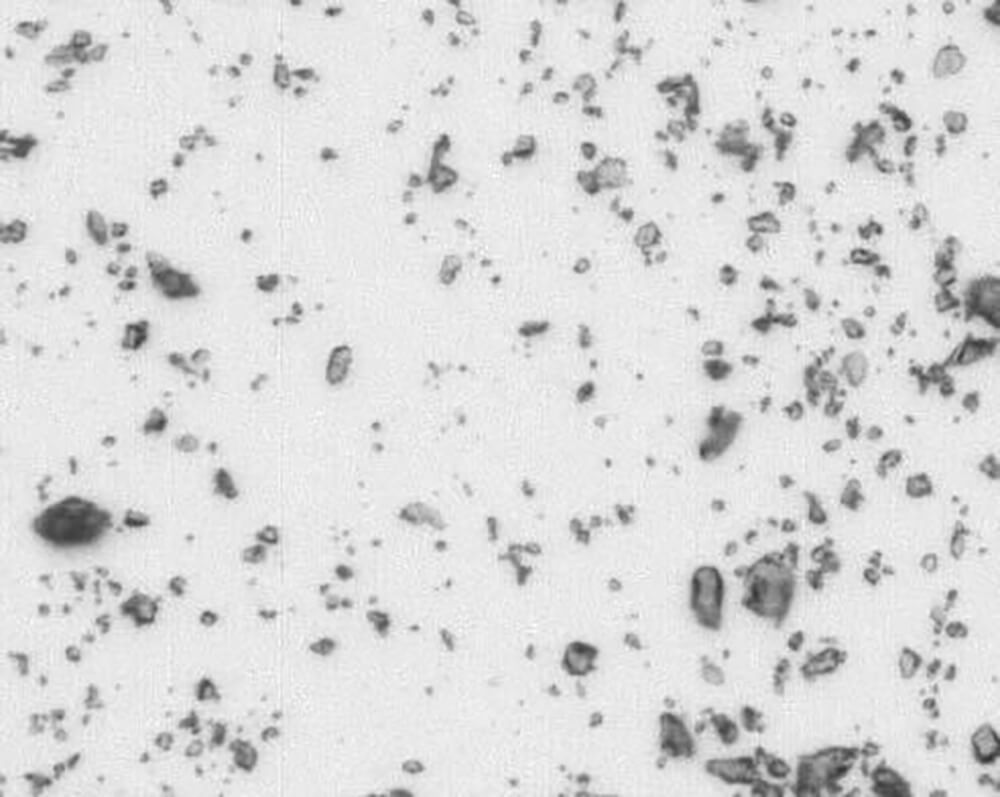

Figure 1. Part of the original image (0.6173 µm/pixel).

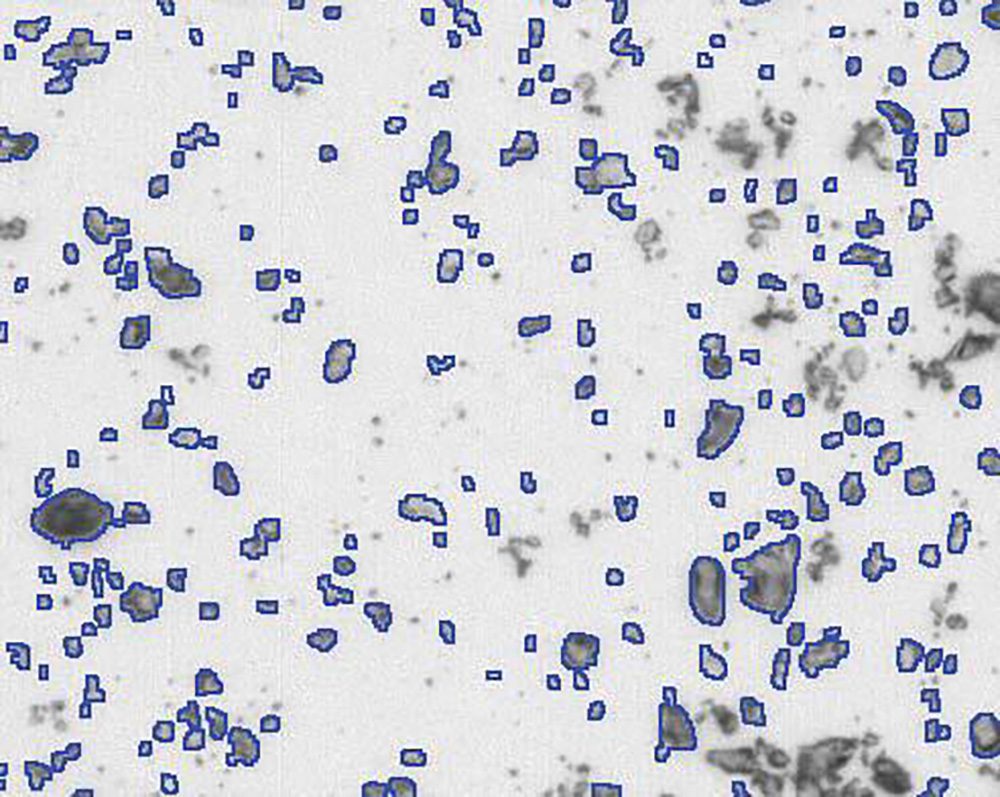

Figure 2. Outline of particles as measured in blue bitplane.
Clemex solution for Fertilizer particle size and shape measurement
Solution
Demonstrate the ability of Clemex Vision image analysis system can discriminate the particles and perform size measurements. The methods and operations used are discussed in the report linked at the bottom of this page (click the Download PDF link).
Results

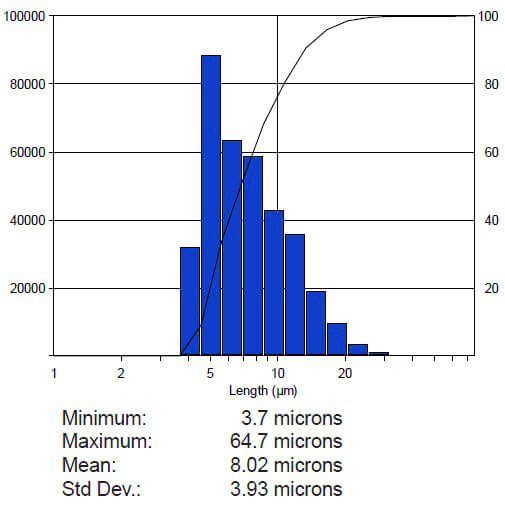

Length, Circular Diameter, Width and Ellipsoidal Volume measurements were performed on each feature. Automated statistics and graphs were generated. Final results can be printed directly from Clemex Vision. Raw data are linked to their respective objects for validation purpose. Raw data can also be exported in Excel format. The complete results can be found in the attached report.
