Grain size in ferritic steel
One ferritic stainless steel image is submitted for analysis.
Figure 1. Original image at 100X.

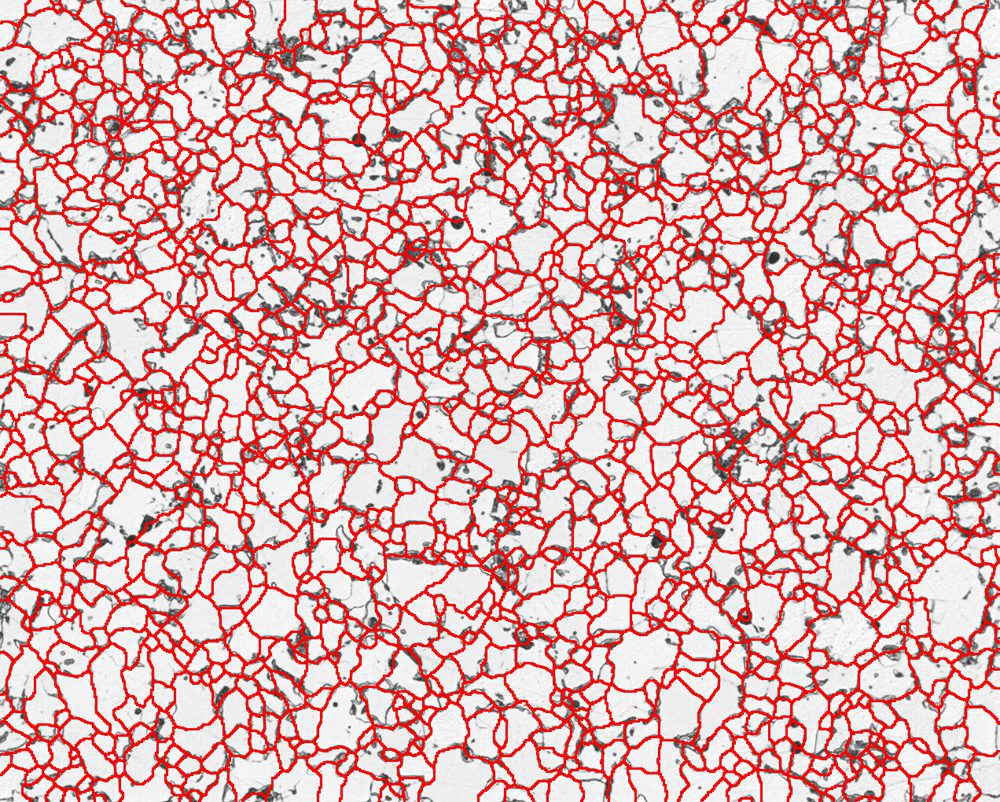

Figure 2. Grain boundary is segmented using the Ferrite-Pearlite instruction prior to measurement.
Clemex solution for Grain Size in Ferritic Steel
Solution
Demonstrate the ability of the Ferrite-Pearlite tool in Clemex Vision to measure grain size in ferritic steel. The methods and operations used are discussed in the report linked at the bottom of this page (click the Download PDF link).

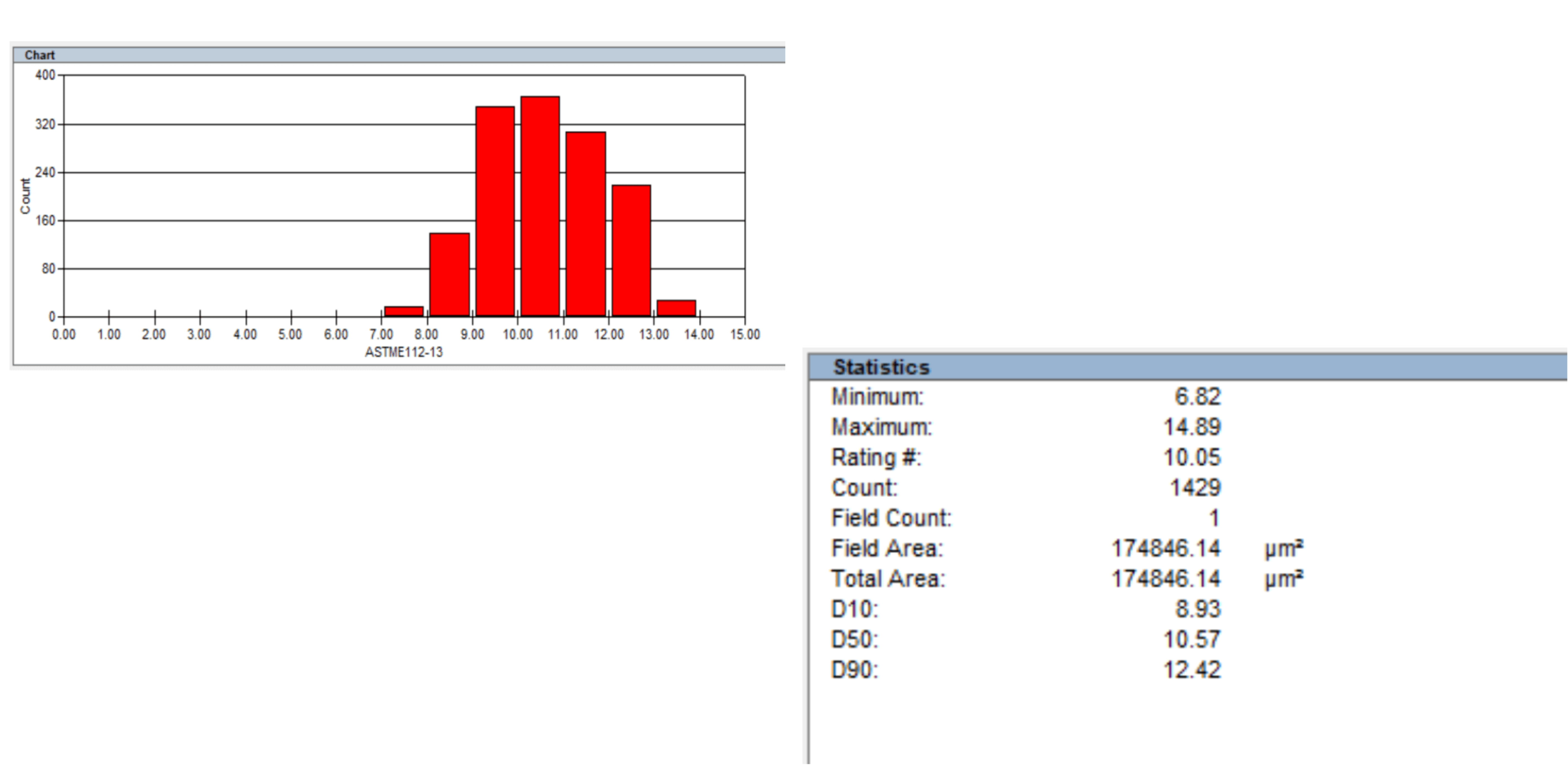

Results
ASTM E 112 grain size measurements are performed. Results are cumulated for automated statistics and graph generation. Final results can be printed directly from Clemex Vision. Raw data are linked to their respective objects and can be exported in Excel format.
