Scientific Image Acquisition
Clemex Captiva is the ideal product for laboratories seeking a robust out-of-the-box solution for simple applications requiring image capture, quantification and nondestructive annotations.
Types of Analysis

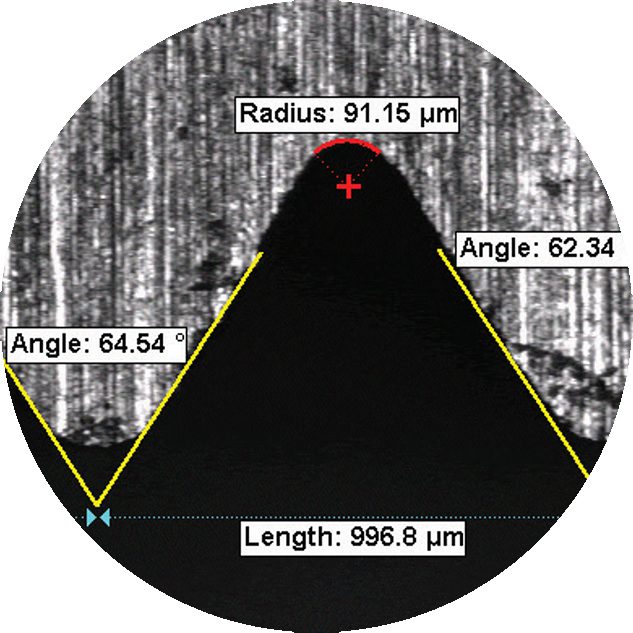

Thread Analysis

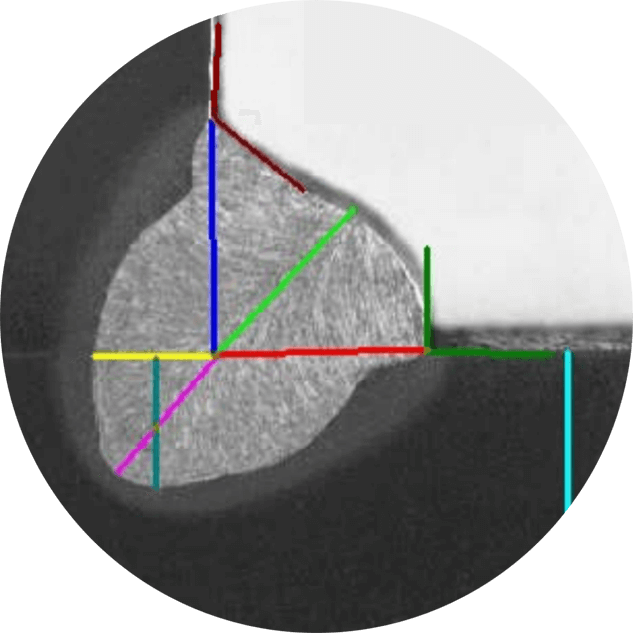

Weld Analysis
Object Measurements

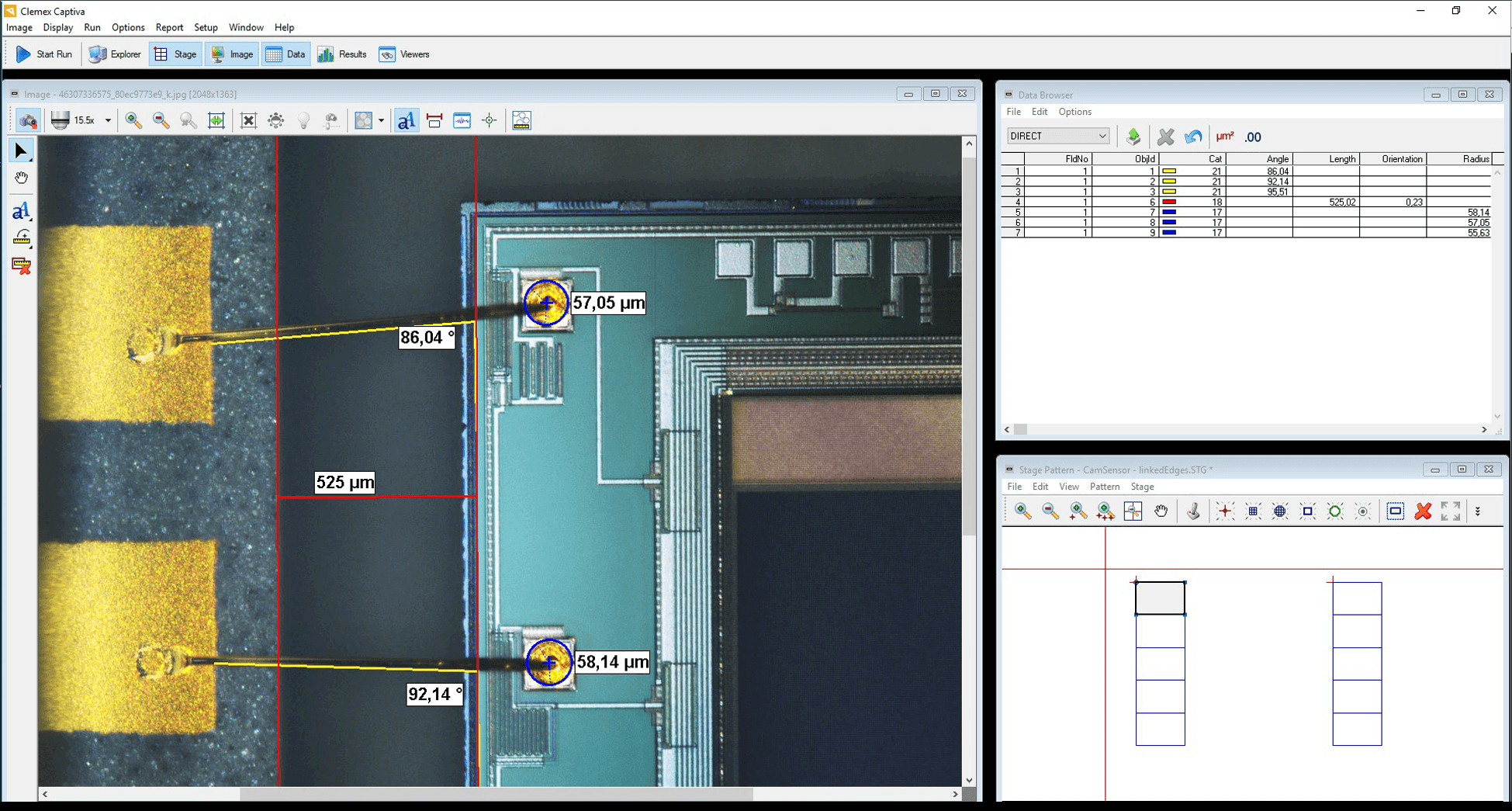

Type of measurements
-
Angles
-
Arc Lenght
-
Area
-
Aspect Ratio
-
Diamter
-
Lenght
-
Orientation
-
Perimeter
-
Radius
-
Roughness
-
Sphericity
-
Width
Key Features

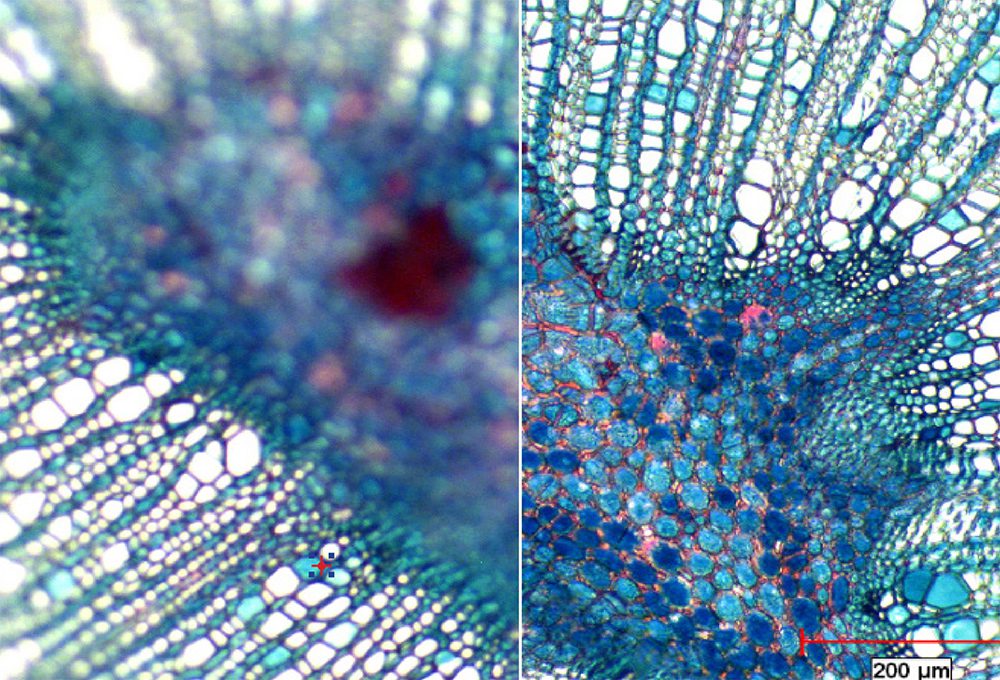

Extended Depth of Field
The Multi-Layer Grab feature allows to work on a sharp composite image of an uneven surface, made up of several images captured at various Z-intervals.
Image Stitching
Whether you have a motorized or manual stage, the mosaic feature seamlessly stitches multiple fields to form one composite image that can be analyzed as a whole.

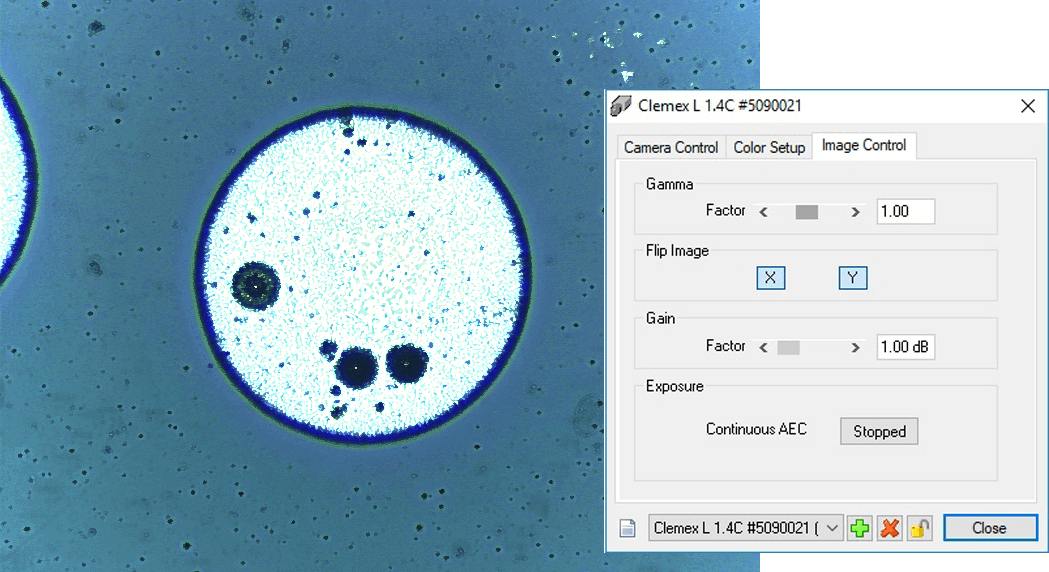

Camera Control
Invert an image (in X or Y), adjust exposure time, grain, gamma, and saturation directly from within the software. Save and lock multiple camera settings and reuse them for specific sample types.

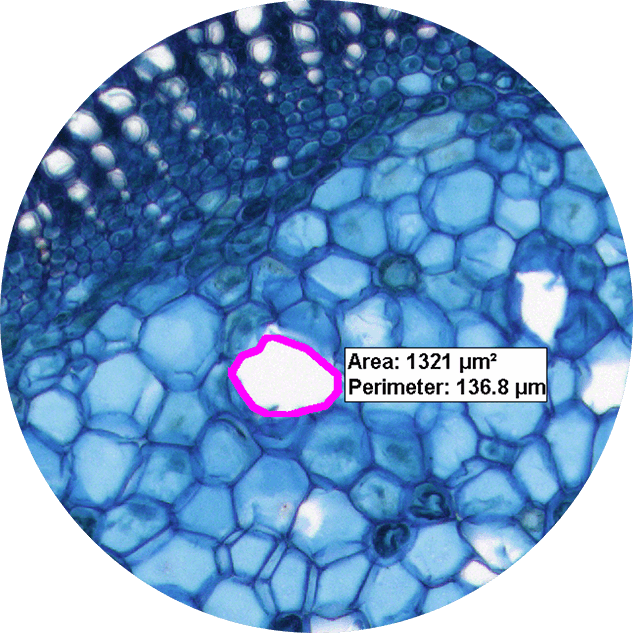

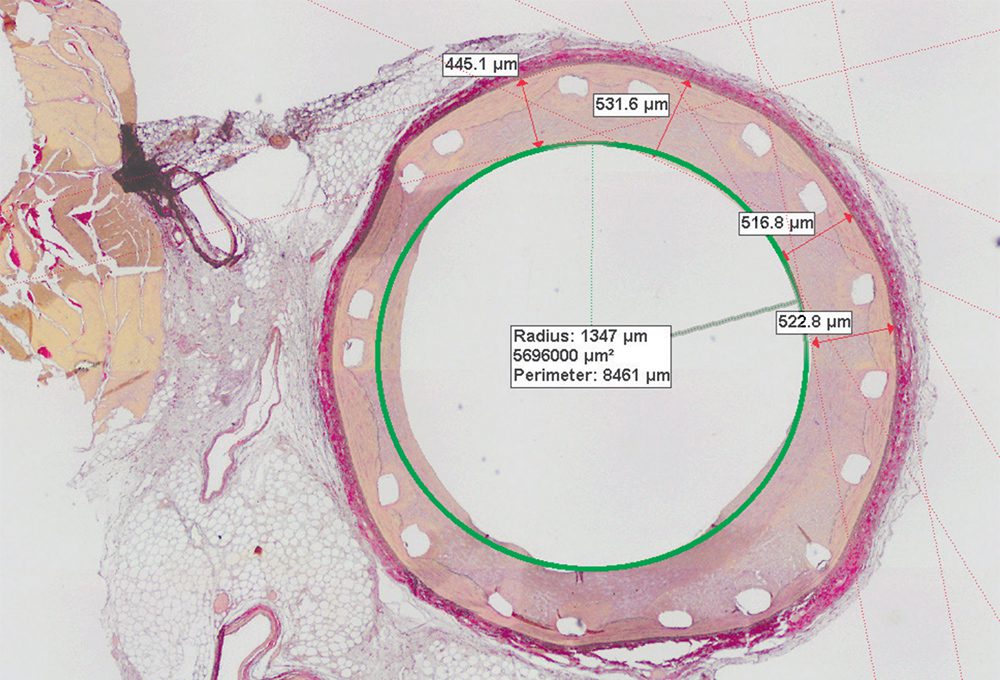

Direct Measurements
Live or stored images can be analyzed using manual measurements. Cumulative object measures from several fields are immediately updated in the data viewer and results graphs.

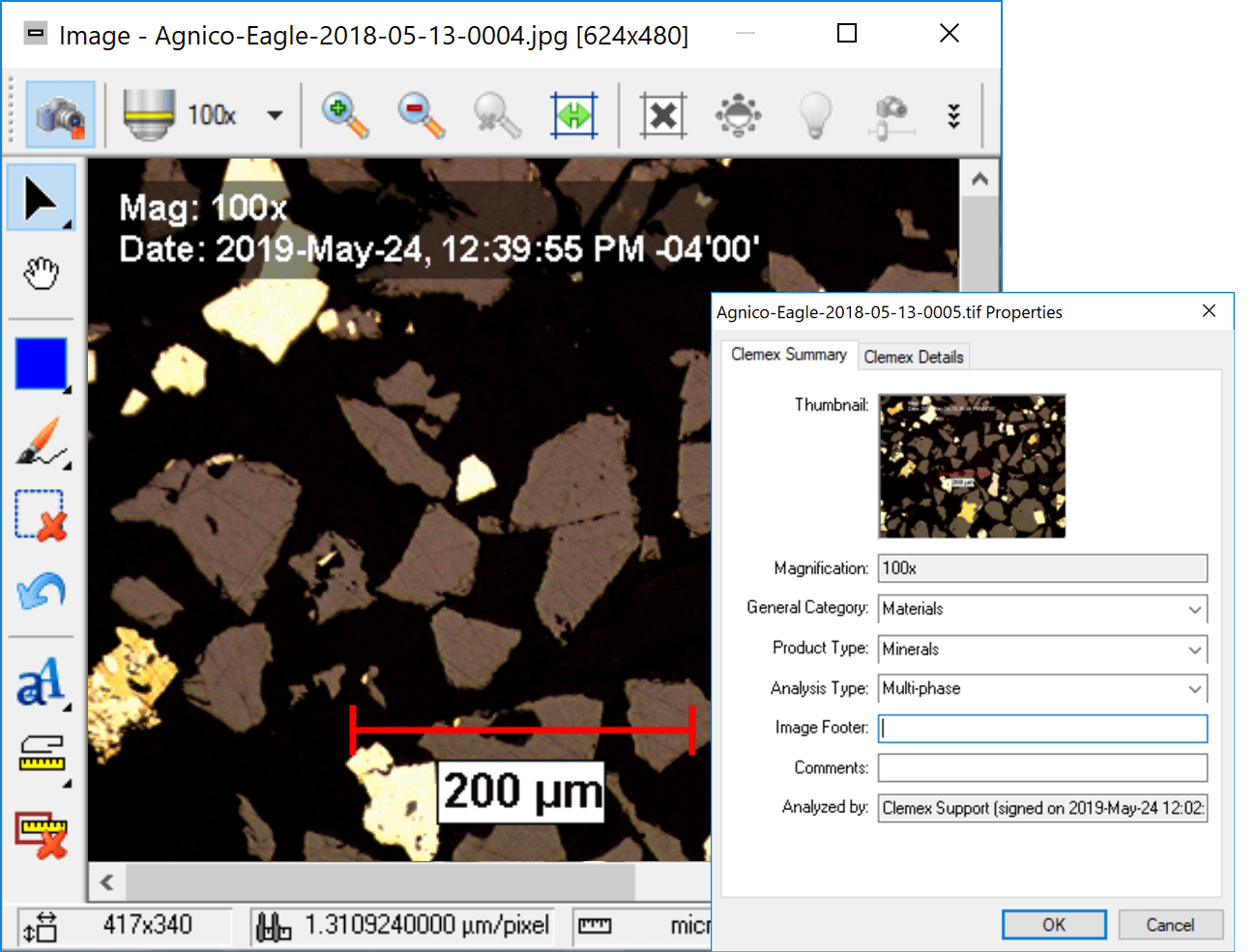

Save Calibrated Images
Save calibrated images with dynamic variables such as auto-numbering, sample name, date or customer ID. Direct measurements and annotations can be save on the image as a separate layer.
MORE FEATURES
CENTERING TOOL Allows you to keep desired features in the center of the image field when switching magnification.
CUSTOMIZABLE SCALE LINE Scale lines automatically display the correct reference length based on the chosen magnification.
IMAGE OPTIMIZATION Shading correction, auto-exposure, white balance, auto-focus, parfocality and paraxiality for each magnification.
GENERATE REPORTS (OPTIONAL) Logos, images, and results can be directly inserted from the software into a customized report template.

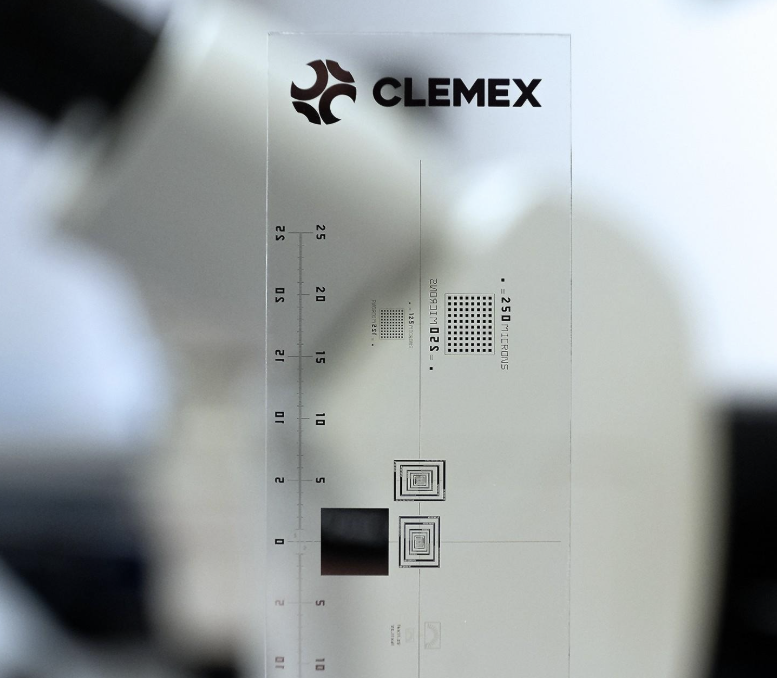

NIST-TRACEABLE CALIBRATION Eliminate operator subjectivity by automatically calibrating each lens using a NIST-traceable micrometer.
OUTLINE OF SAMPLE HOLDER Position stage patterns with precision using an outline image of the sample holder.
RUN MODE Capture and save a series of images with or without a pause for annotations or direct measures.
VIRTUAL JOYSTICK The virtual joystick allows you to move the stage in all directions, focus manually, or trigger auto-focus events.
Product Details

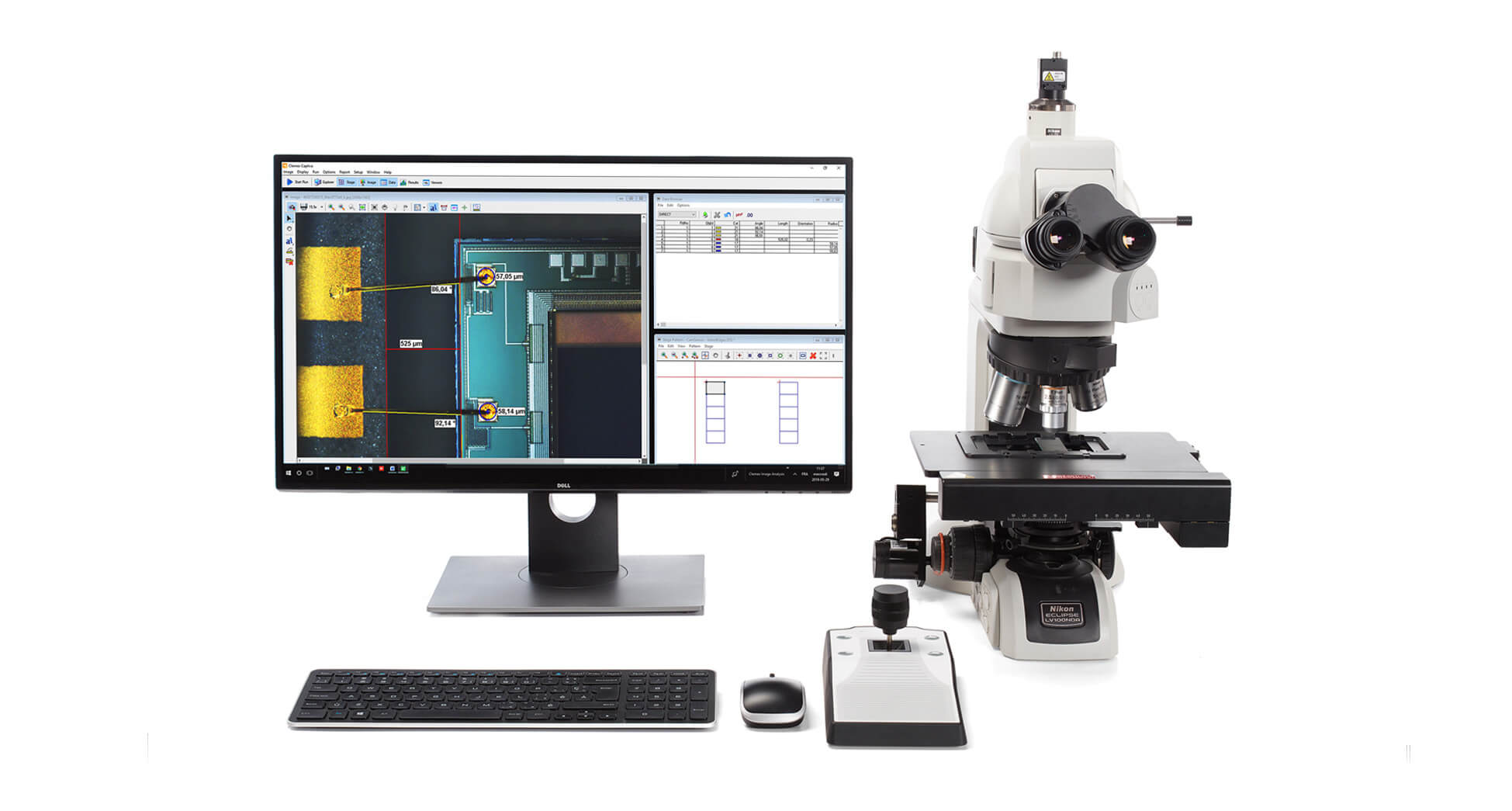

Typically an upright microscope, a motorized stage, and a high-resolution camera are selected to fit your specific image analysis needs. We ensure a seamless integration of all components.
-
Analysis of your needs by a technical representative
-
Configuration, fine-tuning, and calibration
-
On-site installation and training of your team
Increase productivity in a high throughput lab using a very simple workflow. The operator follows a 3-step procedure to obtain repeatable results:
-
Position a sample on the stage
-
Start an analysis on the sample
-
Review data and export results
Hardware
Build your complete image analysis solution
Typically an upright microscope, a motorized stage, and a high-resolution camera are selected to fit your specific image analysis needs. We ensure a seamless integration of all components.
Microscopes
Clemex distributes Nikon and Leica metrology microscopes across the Americas and Europe, enabling accurate, repeatable microscopic analysis.
Learn more

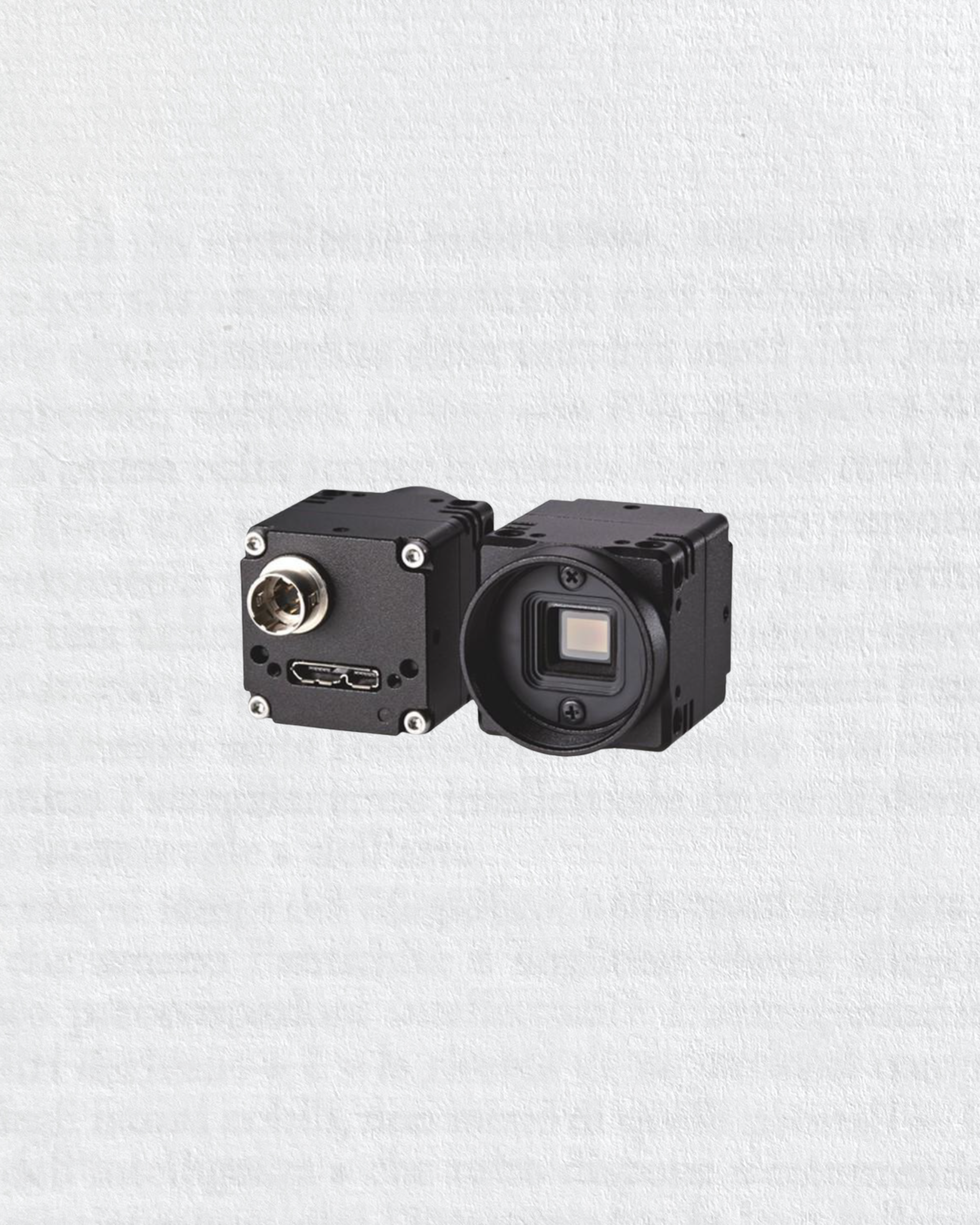

High Resolution Cameras
